Fixed Restorations

We fabricate our fixed restorative solutions with state-of-the-art CAD/CAM technology to ensure that your patient receives a restoration that offers a precise level of fit. From full-contour zirconia to porcelain-fused-to-metal, Mitch Dental Laboratory carries a wide variety of restorations to fit any indication.

Zeus™ Full-Contour Zirconia

CAD/CAM fabricated to offer the most precise fit, our Zeus™ full-contour zirconia restorations are both incredibly durable and esthetic. Our three restorative options are extremely kind to opposing dentition and allow for conservative preparation and cementation. Because our Zeus™ product line is virtually fracture-proof, they are an ideal restoration for bruxers.

Essential ZEUS

Essential ZEUS™

  • Perfect for restoring function at an affordable price
  • Basic anatomy and characterization
  • Perfect for posterior restorations, indicated for three units or less
Classic ZEUS

Classic ZEUS™

  • Solid zirconia balances esthetics with economic pricing
  • Advanced anatomy and esthetic characterization for perfect vitality
  • Enhanced internal and external staining
  • Suitable for both posterior and anterior, indicated for multi-units
Macstudio ZEUS

Macstudio ZEUS™

  • Uncompromising esthetics for prominent dentition
  • Solid zirconia cutback and micro-layered with porcelain
  • Advanced anatomy and characterization
  • Enhanced internal and external staining
  • Suitable for both posterior and anterior, indicated for multi-units
IPS e.max®

IPS e.max®

Offering lifelike translucency from lithium disilicate, IPS e.max® is the leading name in high-translucency ceramics. Pairing its elegant esthetics and average flexural strength of 360 MPa, IPS e.max® is suitable for restorations in the cosmetic zone.

IPS e.max press is indicated for full anterior or posterior crowns, veneers, inlays, onlays,as well as three-unit bridges having only one pontic with the second bicuspid as the most distal abutment.

Bridges which include molars, Maryland style bridges and bridges which have a short vertical height that does not allow for adequate connector height.

D2740 Crown
D2610 Inlay for 1 surface
D2620 Inlay for 2 surfaces
D2630 Inlay for 3 surfaces
D2962 Labial Veneer
D2783 Crown 3/4 Porcelain Ceramic (does not include veneers)

Anterior full-coverage crowns require a chamfer or shoulder margin. A circular shoulder is prepared with rounded inner edges or a chamfer at an angle of 10-30°: the width of the shoulder/chamfer is approx. 1 mm. Facial reduction is 1.5 – 2 mm; 1 – 1.5 mm lingual contact clearance. Incisal reduction is 1.5 – 2 mm with rounded internal line angles, and an incisal edge at least 1mm wide to permit optimum milling of the incisal edge during CAD/CAM processing.
Posterior full-coverage crown requires a chamfer or shoulder margin. A circular shoulder is prepared with rounded inner edges or a chamfer at an angle of 10-30°: the width of the shoulder/chamfer is approx. 1 mm. Occlusal reduction is 1.5 – 2 mm: axial reduction (buccal, lingual and interproximal) is 1.5 mm with rounded internal line angles.

IPS e.max layered – can be either cemented using a resin reinforced glass ionimer such as Relyx Luting cement. Or bonded using a resin cement, when extra strength is needed due to lack of retention on the prep, use a resin cement such as Relyx Unicem or Relyx Ultimate.

Full Cast Crown

Full Cast

A superb restoration indicated for the posterior region, full cast possesses incredible strength and biocompatibility. Full cast is indicated for inlays and crowns, and is extremely gentle on opposing dentition due to alloys available in both noble and high noble. Offer your patient the most durable posterior restoration in full cast.

Full-cast gold crowns are indicated for crowns, veneers, inlays, onlays and bridges.

Full-cast gold crowns are contraindicated for partials and implants.

D2790 Crown Full-Cast Hi-Noble Metal
D2791 Crown Full-Cast Predominantly Base Metal
D2792 Crown Full-Cast Noble Metal

Inlays and onlays can also be fabricated as a full-cast restoration. Feather-edge margin preparations are indicated for full-cast restorations, but any margin preparation may be used.

Panavia 21 (Must be tinplated if precious metal is used)
Glass ionomer cement (GC Fuji, GC America)
Zinc Phosphate Polycarboxylate Resin Ionomer cement (RelyX, 3M ESPE)

Procelain Fused to Metal

PFM

Mitch Dental Laboratory’s porcelain-fused-to-metal restoration offers an excellent alternative to composite crowns. Available in both noble and high noble alloys, PFM is highly biocompatible and provides exceptional shade-matching properties to seamlessly blend the restoration with the patient’s surrounding dentition.

Our PFMs can be used for crowns and bridges (up to fourteen units). PFMs can be manufactured to non-precious, semi-precious, and yellow high noble copings and can be used in conjunction with cast partials and implants.

Contraindicated when the patient has a metal allergy or when the size of the tooth pulp is negligibly smaller thus compromising the tooth preparation process. It is also contraindicated when the clinical tooth crown is very short and lacks the required stability including retention that is enough to provide the space for porcelain and metal.

D2750 Crown Porcelain fused to high noble
D2751 Crown Porcelain fused to non-precious
D2752 Crown Porcelain fused to semi-precious
D6750 Crown Porcelain fused to high noble (bridge units)
D6751 Crown Porcelain fused to non-precious (bridge units)
D6752 Crown Porcelain fused to semi-precious (bridge units)

The ideal preparation for PFMs is a chamfer margin preparation. If a porcelain labial margin is prescribed, then a shoulder margin preparation is required.
Feather-edge margin preparations are indicated for full-cast restorations.

Panavia 21 – tin plated
Glass ionomer cement (GC Fuji, GC America)
Zinc Phosphate Polycarboxylate
Resin Ionomer cement (RelyX, 3M ESPE)

Implants

Mitch Dental Laboratory has extensive experience working with implants of all kinds. Our abutments are compatibile with most major implant manufacturers as part of our continued effort to provide restorative options for patients nationwide.

Genuine Abutment

Genuine

Mitch Dental Laboratory’s OEM abutments are the safest and most reliable choice for seating crowns to dental implants. Our OEM abutments possess proper 510(k) clearance and will not void your patient’s manufacturer warranty, making it the best choice for patients seeking peace of mind protection.

Third-party Abutment

Third-Party

The economical alternative for patients seeking high-quality abutments, our custom abutments are milled at third-party milling centers and possess proper 510(k) clearance. Compatible with most major implants, our third-party abutments are designed to accommodate a wide variety of implant options.

Removables

At Mitch Dental Laboratory, we are highly-skilled in fabricating various removable prostheses, and work directly with edentulous and partially edentulous patients to ensure they receive the high-quality care they deserve.

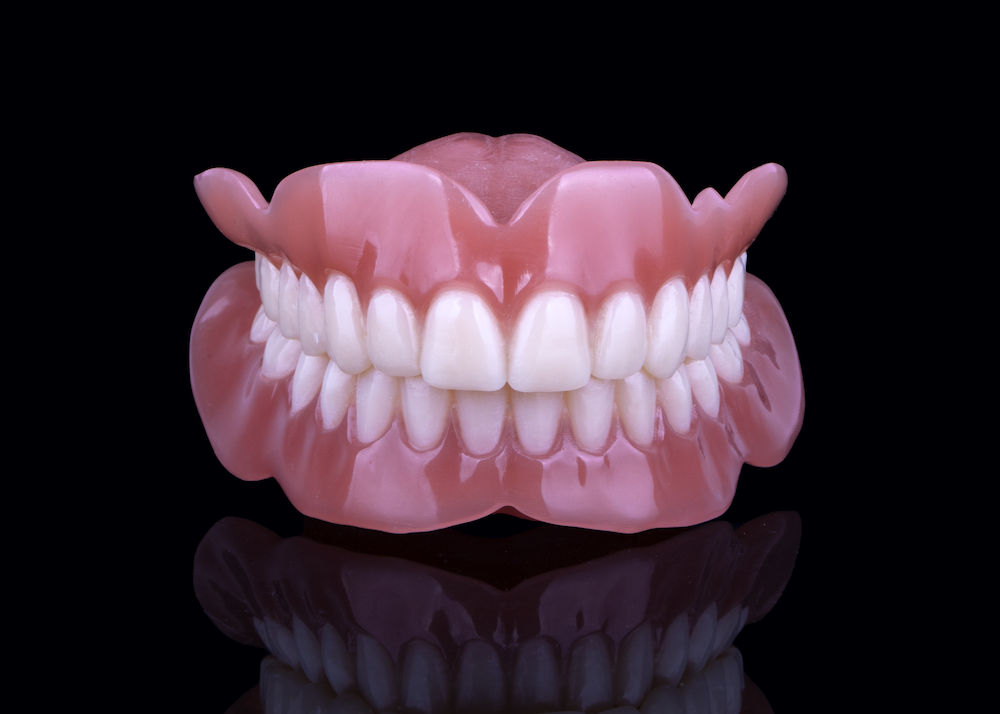

Full Denture

Full Denture

We fabricate our full dentures with hand-packed acrylic, which provides natural esthetics and everyday function. If your edentulous patient is seeking a restoration with both exceptional comfort and precise fit, suggest Mitch Dental Laborator’y full denture restorative solution.

Flexible Partial

Flexible Partial

Mitch Dental Laboratory’s flexible partials are a lightweight restorative solution for partially edentulous patients, and are so comfortable that many patients forget they’re wearing their flexible partial. Fabricated from an ultra-flexible nylon resin, our flexible partials are virtually invisible and blend naturally with a patient’s surrounding dentition.
